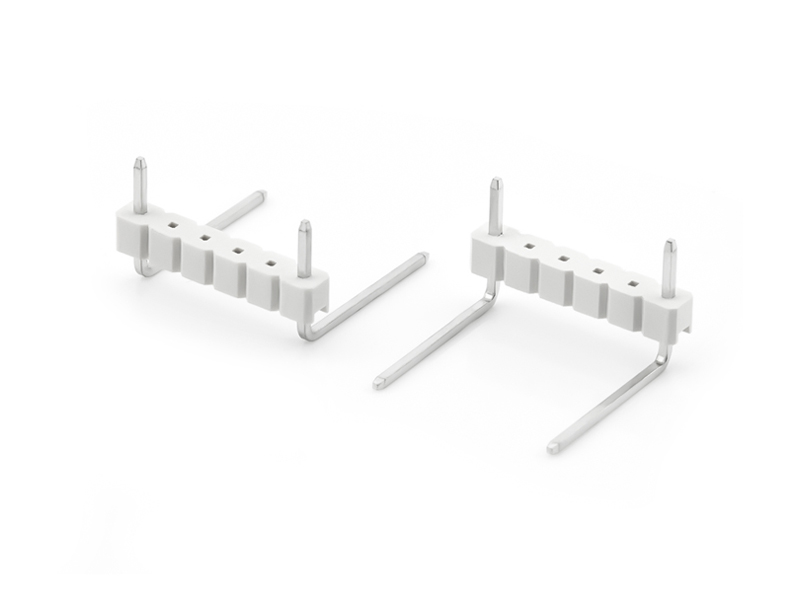

M0009, 2-poliger Spotlight-Steckverbinder, Rastermaß 10 mm, rechtwinkliger Außensteckverbinder, Innensteckverbinder

Produktbeschreibung: H0010, 2-poliger Spotlight-Steckverbinder, Raster 5,3 mm, rechtwinkliger Außensteckverbinder, Innensteckverbinder Details der Immobilie: 1. Materialien: 1.1 Gehäuse: LCP UL94 V-0 1.2 Anschlüsse: Kupferlegierung 2. Beschichtung: Anschlüsse: Matt-in 3. Elektrische Leistung: 3.1 Nennspannung: 275V (AC/DC) 3.2 Nennstrom: 1A 3.3 Isolationswiderstand: 100MΩ min 3.4 Dielektrische Spannungsfestigkeit: 500V AC/1m 3.5 Kontaktwiderstand: 60mΩ MAX. (Initial) 100Ω MAX. (Nach dem Lebensdauertest) 4. Umwelteigenschaften 4.1 Lagertemperaturbereich: -10℃~+50℃ Ein halbes Jahr 4.2 Betriebstemperaturbereich: -40℃~+105℃ 5. RoHS-konform Funktionen und Vorteile: Niedriges Profil minimiert Schattenbildung an Bord Anschlussleisten unterschiedlicher Länge können ohne Polverlust montiert werden, dadurch reduzierte Variantenvielfalt und geringere Produktionskosten Lieferung in Tape-and-Reel-Verpackung zur vollständigen Integration in den DIP-Lötprozess Deutliches Einsparpotenzial durch automatisierte Pick-and-Place-Bestückung Anwendung: LED Scheinwerfer Zertifikat: Die Qualitätskontrolle hat bei GHGM oberste Priorität. Managementsystem: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490 Produktionsqualitätskontrolle: UL, VDE, REACH, RoHS, IEC, CQC Erfindung und Patente: USA, Deutschland, Japan, China Verpackung und Versand: Wir wählen das beste und sicherste Verpackungsmaterial aus, um sicherzustellen, dass Ihre Bestellungen während der Lieferung nicht beschädigt werden. Verschiedene Verpackungsmethoden unterliegen verschiedenen Produkten, wie Tape&real, PE-Beutel, Tube, Tray. Diese Handelsbedingungen sind akzeptabel, EXW, FOB, CFR, CIF usw.

Produktbeschreibung: M9012, 2-poliger Spotlight-Steckverbinder, Raster 10,2 mm, rechtwinkliger Außensteckverbinder, Innensteckverbinder Details der Immobilie: 1. Materialien: 1.1 Gehäuse: LCP UL94 V-0 1.2 Anschlüsse: Kupferlegierung 2. Beschichtung: Anschlüsse: Matt-in 3. Elektrische Leistung: 3.1 Nennspannung: 275V (AC/DC) 3.2 Nennstrom: 1A 3.3 Isolationswiderstand: 100MΩ min 3.4 Dielektrische Spannungsfestigkeit: 500V AC/1m 3.5 Kontaktwiderstand: 60mΩ MAX. (Initial) 100Ω MAX. (Nach dem Lebensdauertest) 4. Umwelteigenschaften 4.1 Lagertemperaturbereich: -10℃~+50℃ Ein halbes Jahr 4.2 Betriebstemperaturbereich: -40℃~+105℃ 5. RoHS-konform Funktionen und Vorteile: Niedriges Profil minimiert Schattenbildung an Bord Anschlussleisten unterschiedlicher Länge können ohne Polverlust montiert werden, dadurch reduzierte Variantenvielfalt und geringere Produktionskosten Lieferung in Tape-and-Reel-Verpackung zur vollständigen Integration in den DIP-Lötprozess Deutliches Einsparpotenzial durch automatisierte Pick-and-Place-Bestückung Anwendung: LED Scheinwerfer Zertifikat: Die Qualitätskontrolle hat bei GHGM oberste Priorität. Managementsystem: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490 Produktionsqualitätskontrolle: UL, VDE, REACH, RoHS, IEC, CQC Erfindung und Patente: USA, Deutschland, Japan, China Verpackung und Versand: Wir wählen das beste und sicherste Verpackungsmaterial aus, um sicherzustellen, dass Ihre Bestellungen während der Lieferung nicht beschädigt werden. Verschiedene Verpackungsmethoden unterliegen verschiedenen Produkten, wie Tape&real, PE-Beutel, Tube, Tray. Diese Handelsbedingungen sind akzeptabel, EXW, FOB, CFR, CIF usw.

Product Description:GHPT4-QU-PE Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：77*35.3*6.2mm2.   Wiring capacity：0.2-6mm²(solid wire) / 0.2-4mm²(Stranded wire), 24-10AWG3.   Voltage/Current：4.   Wiring quantity：45.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT4-PE Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：55.8*35.3*6.2mm2.   Wiring capacity：0.2-6mm²(solid wire) / 0.2-4mm²(Stranded wire), 26-10AWG3.   Voltage/Current：4.   Wiring quantity：25.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH5235 Pin spacing 5.0 mm,  PCB terminal block, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit, PCB terminal block, Push-in CAGE CLAMP®Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 8A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Available in 2-24 pole configurationsCompact terminal strips without push-buttonsPush-in terminations of solid and ferruled conductorsTermination/removal of fine-stranded conductors via push-buttons45° conductor entry angle provides easy, space-saving wiringCustom color combinationsTerminal strips also available with spacers upon requestApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT025-TW Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：60.5*35.3*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：IEC: 800V/24A, UL:600V/20A4.   Wiring quantity：35.   Number of poles：1 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GHPT025-2L-PE Plug-in terminal block, Din-rail terminal blockProperty Details:1.  Width/ height/thickness：68.4*46.1*5.2mm2.   Wiring capacity：0.2-4 mm²(solid wire) / 0.2-2.5 mm²(Stranded wire), 26-12 AWG3.   Voltage/Current：4.   Wiring quantity：45.   Number of poles：2 Structural Features:Suitable for quick installation on NS35/7.5 and NS35/15 standard DIN rails;Single-strand solid wire or multi-strand soft wire with riveted cold-pressed terminal can be connected by directly inserting the conductive part into the wiring hole, realizing tool-free quick connection operation;The product button can be pressed by a screwdriver to release the wire, realizing quick disconnection without damage to the wire, and realizing fast maintenance operation;The product can be used with multi-digit bridge accessories, and multiple lines can be quickly connected by inserting bridge parts;The surface height of the product wiring hole is consistent, and the marking strip installation slot is reserved for quick marking operation.Application:This series of terminal blocks can be widely used in low-voltage power distribution systems, mechanical equipment control systems, automation control systems, rail transportation, construction, lighting and other fields.Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Produktbeschreibung: M9012, 2-poliger Spotlight-Steckverbinder, Raster 10,2 mm, rechtwinkliger Außensteckverbinder, Innensteckverbinder Details der Immobilie: 1. Materialien: 1.1 Gehäuse: LCP UL94 V-0 1.2 Anschlüsse: Kupferlegierung 2. Beschichtung: Anschlüsse: Matt-in 3. Elektrische Leistung: 3.1 Nennspannung: 275V (AC/DC) 3.2 Nennstrom: 1A 3.3 Isolationswiderstand: 100MΩ min 3.4 Dielektrische Spannungsfestigkeit: 500V AC/1m 3.5 Kontaktwiderstand: 60mΩ MAX. (Initial) 100Ω MAX. (Nach dem Lebensdauertest) 4. Umwelteigenschaften 4.1 Lagertemperaturbereich: -10℃~+50℃ Ein halbes Jahr 4.2 Betriebstemperaturbereich: -40℃~+105℃ 5. RoHS-konform Funktionen und Vorteile: Niedriges Profil minimiert Schattenbildung an Bord Anschlussleisten unterschiedlicher Länge können ohne Polverlust montiert werden, dadurch reduzierte Variantenvielfalt und geringere Produktionskosten Lieferung in Tape-and-Reel-Verpackung zur vollständigen Integration in den DIP-Lötprozess Deutliches Einsparpotenzial durch automatisierte Pick-and-Place-Bestückung Anwendung: LED Scheinwerfer Zertifikat: Die Qualitätskontrolle hat bei GHGM oberste Priorität. Managementsystem: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490 Produktionsqualitätskontrolle: UL, VDE, REACH, RoHS, IEC, CQC Erfindung und Patente: USA, Deutschland, Japan, China Verpackung und Versand: Wir wählen das beste und sicherste Verpackungsmaterial aus, um sicherzustellen, dass Ihre Bestellungen während der Lieferung nicht beschädigt werden. Verschiedene Verpackungsmethoden unterliegen verschiedenen Produkten, wie Tape&real, PE-Beutel, Tube, Tray. Diese Handelsbedingungen sind akzeptabel, EXW, FOB, CFR, CIF usw.
