F3002, Leuchtstoffröhrenanschluss, G17-Stecker, Schlauchanschlüsse

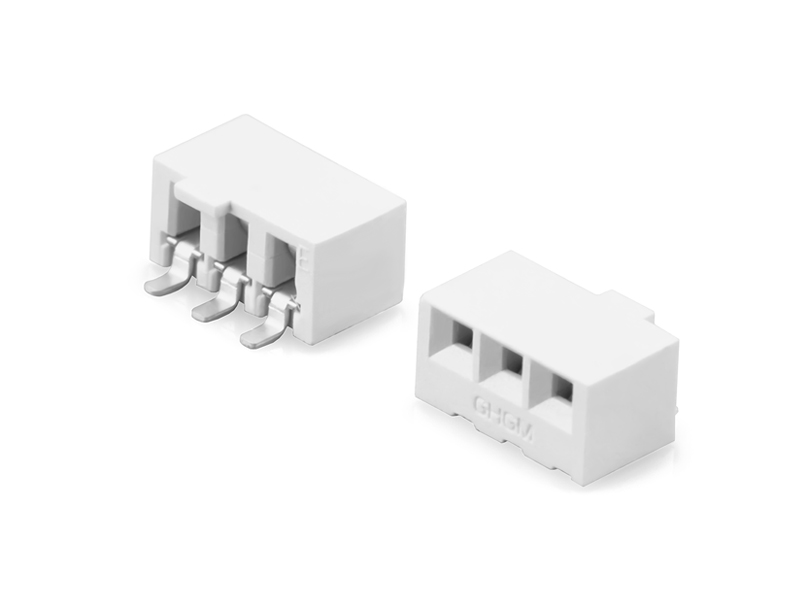

Produktbeschreibung: M3002, Leuchtstoffröhrenstecker, G17-Buchsenstecker Details der Immobilie: 1. Materialien: 1.1 Gehäuse: LCP UL94 V-0 1.2 Anschlüsse: Kupferlegierung 2. Beschichtung: Anschlüsse: Matt-in 3. Elektrische Leistung: 3.1 Nennspannung: 275V (AC/DC) 3.2 Nennstrom: 1A 3.3 Isolationswiderstand: 100MΩ min 3.4 Dielektrische Spannungsfestigkeit: 500V AC R.M.S/1m 4. Umwelteigenschaften 4.1 Lagertemperaturbereich: -10℃~+50℃ Ein halbes Jahr 4.2 Betriebstemperaturbereich: -40℃~+105℃ 5. RoHS-konform Funktionen und Vorteile: Niedriges Profil minimiert Schattenbildung an Bord Lieferung in Tape-and-Reel-Verpackung zur vollständigen Integration in den SMT-Lötprozess Deutliches Einsparpotenzial durch automatisierte Pick-and-Place-Bestückung Anwendung: Leuchtstoffröhre Zertifikat: Die Qualitätskontrolle hat bei GHGM oberste Priorität. Managementsystem: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490 Produktionsqualitätskontrolle: UL, VDE, REACH, RoHS, IEC, CQC Erfindung und Patente: USA, Deutschland, Japan, China Verpackung und Versand: Wir wählen das beste und sicherste Verpackungsmaterial aus, um sicherzustellen, dass Ihre Bestellungen während der Lieferung nicht beschädigt werden. Verschiedene Verpackungsmethoden unterliegen verschiedenen Produkten, wie Tape&real, PE-Beutel, Tube, Tray. Diese Handelsbedingungen sind akzeptabel, EXW, FOB, CFR, CIF usw.

Produktbeschreibung: G20 M4004, LED-Lichtstecker, flaches Profil, Intelligent Lighting-Stecker, Rastermaß 2,0 mm, 2-6-polig, einreihig, männlicher Gegenstecker Details der Immobilie: 1. Materialien: 1.1 Gehäuse: LCP UL94 V-0 1.2 Anschlüsse: Kupferlegierung 2. Beschichtung: Anschlüsse: Matt-in 3. Elektrische Leistung: 3.1 Nennspannung: 275V (AC/DC) 3.2 Nennstrom: 1A 3.3 Isolationswiderstand: 100MΩ min 3.4 Dielektrische Spannungsfestigkeit: 500V AC/1m 3.5 Kontaktwiderstand: 60mΩ MAX. (Initial) 100Ω MAX. (Nach dem Lebensdauertest) 4. Umwelteigenschaften 4.1 Lagertemperaturbereich: -10℃~+50℃ Ein halbes Jahr 4.2 Betriebstemperaturbereich: -40℃~+105℃ 5. RoHS-konform Funktionen und Vorteile: Niedriges Profil minimiert Schattenbildung an Bord Anschlussleisten unterschiedlicher Länge können ohne Polverlust montiert werden, dadurch reduzierte Variantenvielfalt und geringere Produktionskosten Erhältlich in 2–6-poligen Konfigurationen Lieferung in Tape-and-Reel-Verpackung zur vollständigen Integration in den SMT-Lötprozess Deutliches Einsparpotenzial durch automatisierte Pick-and-Place-Bestückung Anwendung: LED-Glühbirne Intelligenter Beleuchtungsanschluss SmartLighting-Anschluss Verfügbar: Tuya, Xiaomi, Ayla, Homekit-Plattform Zertifikat: Die Qualitätskontrolle hat bei GHGM oberste Priorität. Managementsystem: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490 Produktionsqualitätskontrolle: UL, VDE, REACH, RoHS, IEC, CQC Erfindung und Patente: USA, Deutschland, Japan, China Verpackung und Versand: Wir wählen das beste und sicherste Verpackungsmaterial aus, um sicherzustellen, dass Ihre Bestellungen während der Lieferung nicht beschädigt werden. Verschiedene Verpackungsmethoden unterliegen verschiedenen Produkten, wie Tape&real, PE-Beutel, Tube, Tray. Diese Handelsbedingungen sind akzeptabel, EXW, FOB, CFR, CIF usw.

Product Description:GH135T 20A, high current, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 20A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 600V (AC/DC)        3.2    Current Rated: 57A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 20A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH2061 Pitch 5.0 mm,  PCB terminal block, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit, PCB terminal block, Push-in CAGE CLAMP®Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Available in 1-24 pole configurationsCompact terminal strips without push-buttonsPush-in terminations of solid and ferruled conductorsTermination/removal of fine-stranded conductors via push-buttons45° conductor entry angle provides easy, space-saving wiringCustom color combinationsTerminal strips also available with spacers upon requestApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH5804 Pin spacing 5.0 mm,  PCB terminal block, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby Kit, PCB terminal block, Push-in CAGE CLAMP®Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 12A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Available in 2-24 pole configurationsCompact terminal strips without push-buttonsPush-in terminations of solid and ferruled conductorsTermination/removal of fine-stranded conductors via push-buttons45° conductor entry angle provides easy, space-saving wiringCustom color combinationsTerminal strips also available with spacers upon requestApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH2EDGK & GH2EDGVC 15A, PCB Mount Terminal Block Connector Electronic Components Electronic Hobby KitThis wiree to Board connector are used widely for connecting Wires to Boards, It can be for Power Supply or connecting any other perpheral like Motor to the Board. The distance between two mounting pins is in multiple of standard 5.0mm so that this connector can be mounted easily on general purpose PCBs. This connector can be used safely for current of up to 15A.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 15A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Low profle minimizes on-board shadowinghis connector can be used safely for current of up to 15A.Available in 2-24 pole configurationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Product Description:GH0806b plug-in spring wiring connector, Pin spacing 5.0 mm, Intuitive tool-free operation, adopts a plug-in spring wiring structure and a retractable operating handle, PCB terminal block, Push-in CAGE CLAMP®▪Single-solid, thin multi-strand wires and wires with cold-pressed ends can be inserted directly.▪Multiple wiring units can be kept open at the same time, making the connection of multi-core cables easier.▪The original design of wire inlet insertion into wire rib strips greatly reduces the possibility of failure of wires being easily dragged due to external forces or other factors, and the shell units are disengaged.Property Details:1.   Materials:        1.1    Housing: LCP UL94 V-0        1.2    Terminals: Copper Alloy2.   Plating: Terminals: Matte-in3.   Electrical performance:        3.1    Voltage Rated: 300V (AC/DC)        3.2    Current Rated: 20A        3.3    Insulation Resistance: 100MΩ min        3.4    Dielectric withstanding voltage: 500V AC R.M.S/1m4.   Environmental Characteristic        4.1    Storage temperature range: -10℃~+50℃ Half a year        4.2    Operating temperature range: -40℃~+105℃5.   RoHS compliantFeatures and Advantages:Intuitive tool-free operationAdopts a plug-in spring wiring structure and a retractable operating handleAvailable in 2-24 pole configurationsCompact terminal strips without push-buttonsPluggable terminal blockTermination/removal of fine-stranded conductors via push-buttons45° conductor entry angle provides easy, space-saving wiringCustom color combinationsApplication:Power Supply connectorPrinted Circuit Board (PCB)Certificate:The quality control have the first priority in GHGM.Management system: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490Production Quality Control: UL, VDE, REACH, RoHS, IEC, CQCInvention and Patents: US, Germany, Japan, ChinaPacking and Shipping:We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.Different packing method is subjected to different products, like Tape&real, PE Bag, Tube, Tray.These trade terms are acceptable, EXW, FOB, CFR, CIF, etc.

Produktbeschreibung: GH016 wasserdicht Kabelverschraubung Kabel fester Kopf, IP68, M16, M18, M20 Details der Immobilie: 1. Materialien: 1.1 Gehäuse: PA66 UL94 V-0 1.2 Wasserbeständig: Gummi 2. RoHS-konform 3. Kabelbereich: A 2-6 mm B 4-8 mm B 5-10 mm 4. Umwelteigenschaften 4.1 Lagertemperaturbereich: -10℃~+50℃ Ein halbes Jahr 4.2 Betriebstemperaturbereich: -40℃~+100℃ Funktionen und Vorteile:Es kann unter verschiedenen Bedingungen mit einem Temperaturbereich von -40 ° . angewendet werden C ~ 85 Schwarzes Finish. Anwendung: Kabelverschraubungen werden häufig verwendet, um elektrische Kabelenden an Geräten und Geräten anzuschließen und zu befestigen. Zertifikat: Die Qualitätskontrolle hat bei GHGM oberste Priorität. Managementsystem: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490 Produktionsqualitätskontrolle: UL, VDE, REACH, RoHS, IEC, CQC Erfindung und Patente: USA, Deutschland, Japan, China Verpackung und Versand: Wir wählen das beste und sicherste Verpackungsmaterial aus, um sicherzustellen, dass Ihre Bestellungen während der Lieferung nicht beschädigt werden. Verschiedene Verpackungsmethoden unterliegen verschiedenen Produkten, wie Tape&real, PE-Beutel, Tube, Tray. Diese Handelsbedingungen sind akzeptabel, EXW, FOB, CFR, CIF usw.
