Screwless PCB Terminal Blocks

 /GH0744 ohne Taster, Rastermaß 3,5 mm, 7A, Hochstrom, Klemmenleiste für Leiterplattenmontage Elektronische Komponenten Elektronisches Hobby-Kit, Leiterplattenklemme

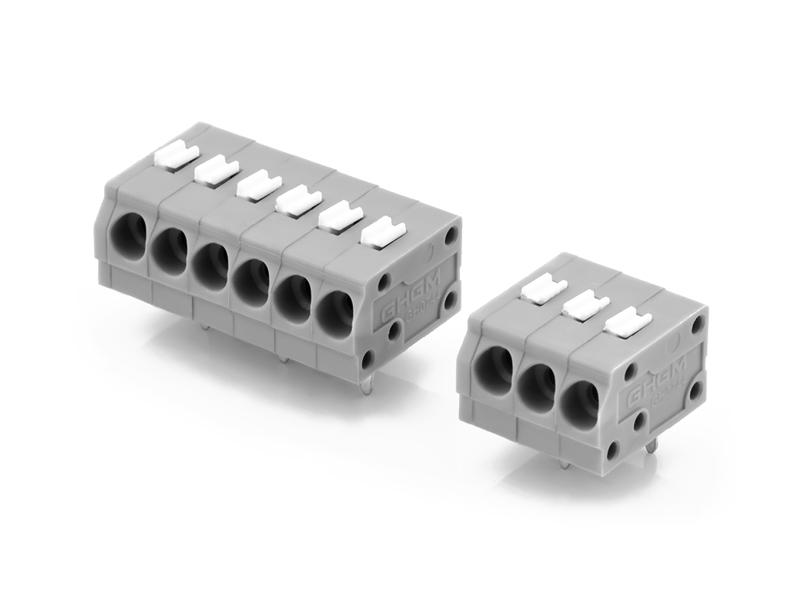

GH0744 Pitch 5.0mm PCB mount connector terminal blocks
GH0744 Pitch 5.0mm PCB mount connector terminal blocks GH0744 Pitch 5.0mm PCB mount connector terminal blocks GH0744 Pitch 5.0mm PCB mount connector terminal blocks

GH0744 ohne Taster, Rastermaß 3,5 mm, 7A, Hochstrom, Klemmenleiste für Leiterplattenmontage Elektronische Komponenten Elektronisches Hobby-Kit, Leiterplattenklemme

  • Marke:

    GHGM

  • Art.-Nr.:

    GH0744

  • Warenbestand:

    1000

  • Anwendung:

    LED bulb connector

  • Tonhöhe:

    5.0mm

  • Stift:

    2-24pin

  • Material - Kontakt:

    COPPER ALLOY

  • Spannungswert:

    300V

  • Aktuelle Bewertung:

    9A

  • Draht AWG:

    16-22AWG

  • Zertifikat:

    UL
Jetzt anfragen

Produktbeschreibung:

GH0744 ohne Taster, Rastermaß 3,5 mm, 7A, Hochstrom, Klemmenblock-Steckverbinder für Leiterplattenmontage Elektronische Komponenten Elektronisches Hobby-Kit, PCB-Klemmenblock, Push-in CAGE CLAMP®


Dieser Draht-zu-Platine-Steckverbinder wird häufig zum Anschließen von Drähten an Platinen verwendet. Er kann zur Stromversorgung oder zum Anschließen anderer Peripheriegeräte wie Motor an die Platine verwendet werden. Der Abstand zwischen zwei Montagestiften beträgt ein Vielfaches von standardmäßigen 3,5 mm, sodass dieser Steckverbinder problemlos auf Allzweck-Leiterplatten montiert werden kann. Dieser Steckverbinder kann sicher für Ströme von bis zu 7A verwendet werden.


Details der Immobilie:

1. Materialien:

1.1 Gehäuse: LCP UL94 V-0

1.2 Anschlüsse: Kupferlegierung

2. Beschichtung: Anschlüsse: Matt-in

3. Elektrische Leistung:

3.1 Nennspannung: 300V (AC/DC)

3.2 Nennstrom: 7A

3.3 Isolationswiderstand: 100MΩ min

3.4 Dielektrische Spannungsfestigkeit: 500V AC R.M.S/1m

4. Umwelteigenschaften

4.1 Lagertemperaturbereich: -10℃~+50℃ Ein halbes Jahr

4.2 Betriebstemperaturbereich: -40℃~+105℃

5. RoHS-konform


Funktionen und Vorteile:

  • Niedriges Profil minimiert Schattenbildung an Bord, nur 7,7 mm hoch

  • Dieser Stecker kann sicher für Ströme bis 7A verwendet werden.

  • Erhältlich in 2-24-poligen Konfigurationen

  • Kompakte Klemmleisten ohne Taster

  • Push-in-Anschlüsse von eindrähtigen und mit Aderendhülsen versehenen Leitern

  • Anschließen/Entfernen von feindrähtigen Leitern über Drucktaster

  • 45° Leitereinführungswinkel ermöglicht eine einfache und platzsparende Verdrahtung

  • Benutzerdefinierte Farbkombinationen

  • Klemmleisten auf Anfrage auch mit Distanzstücken erhältlich


Anwendung:

  • Netzteilanschluss

  • Leiterplatte (PCB)


Zertifikat:

  • Die Qualitätskontrolle hat bei GHGM oberste Priorität.

  • Managementsystem: IATF 16949:2106, ISO 9001, ISO 14001, GB/T29490

  • Produktionsqualitätskontrolle: UL, VDE, REACH, RoHS, IEC, CQC

  • Erfindung und Patente: USA, Deutschland, Japan, China

GHGM certificate, qualtity control, invention and patents.jpg


Verpackung und Versand:

  • Wir wählen das beste und sicherste Verpackungsmaterial aus, um sicherzustellen, dass Ihre Bestellungen während der Lieferung nicht beschädigt werden.

  • Verschiedene Verpackungsmethoden unterliegen verschiedenen Produkten, wie Tape&real, PE-Beutel, Tube, Tray.

  • Diese Handelsbedingungen sind akzeptabel, EXW, FOB, CFR, CIF usw.

GHGM shipping and packing.jpg
